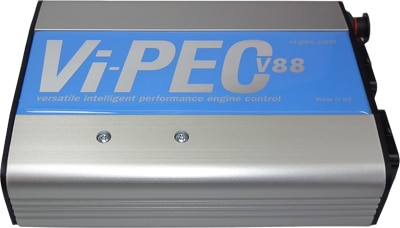

The Vi-PEC V88 has many features which allow it to be setup to suit various types of engine configurations. It has very flexible options over how the inputs and outputs are controlled, and allows the user to design their own functions to control all sorts of devices. Precise control of injectors and ignition angle are guaranteed at very low or high RPM or manifold pressures. A very high level of protection from interference and tolerance of trigger input errors has been built into this ECU, ensuring a smooth running engine even under the most demanding conditions.
-
Variable camshaft control for up to four camshafts. Control of camshaft position is very precise and time taken to advance from full retard to full advance is less than 1 second. Support for VVT and VANOS systems.
-
Closed loop control of idle speed and boost pressure makes for a "factory" idle speed stability, and precise control of boost pressure. Boost control can be setup to provide a different boost in each gear.
-
Individual Cylinder Knock control, with support for two sensors. Knock control is user definable with flexible settings to allow precise knock control.
-
E-Throttle (Electronic Throttle Control).
-
Peak and hold injector drivers are 10 amp. Both the peak Amps and hold Amps can be set separately in the software for optimum injector control.
Features
|
Ignition Outputs |
8 |
|
Injector Outputs |
8 |
|
Auxiliary Outputs (PWM or On/Off) |
10 |
|
Analog Input Voltage |
11 |
|
Analog Input Temperature |
4 |
|
Digital Inputs |
10 |
|
Knock Sensor Input |
2 |
|
Peak & Hold Injector Drives |
Y |
|
Internal MAP Sensor |
No |
|
User Define GP On/Off |
Up to 18 |
|
User Define GP PWM Tables |
Up to 12 |
|
Variable Cam Control |
Up to 4 |
|
Idle Control for 2 & 3 Wire Valves |
Y |
|
Idle Control, 4 & 6 Wire Stepper |
Y |
|
Boost Control |
Y |
|
Antilag |
Y |
|
Flat Shift |
Y |
|
Launch Control |
Y |
|
Logging Memory (ECU) |
4MB |
|
Closed Loop Narrow Band |
Y |
|
Closed Loop Wideband WOT (External wideband controller required) |
Y |
|
E-Throttle (DBW) |
Y |
|
Knock Control |
Y |
|
QuickTune |
Y |
|
PC Memory Logging |
Y |
Hardware info
The original product will have been shipped with the following hardware setup:
-
Main Connector 2 x 34 Pin waterproof.
-
USB data link connector plus CAN
-
Case, silver extruded aluminium, 169 x 172 x 42 mm (overall).
-
40 MHz Specialised Automotive Microprocessor.
-
Ignition control to 0.1 degree, fuel to 0.01 ms -
-
32 Bit Calculation
-
10 Bit ADC Resolution
-
Max 20000 RPM
-
ECU to PC data link operates at up to 115k baud for fast cal down load & Log file upload (19sec typ for 112k bytes). 112k logging memory.
-
Internal Diagnostic light & optional remote light.
-
High efficiency power supply & output drivers for reduced power consumption and reduced self-heating.
-
Eight ignition outputs. Sequential to 8 cylinders and wasted spark up to 16 cylinders.
-
Software selectable mappable dwell or O/P pulse duration modes possible.
-
Eight coil dwell, software selectable.
-
Eight high current injector outputs.
-
Spare injector and ignition outputs can be used for output control.
-
10 Auxiliary Outputs
-
11 Digital Inputs
-
4 Temperature Inputs
-
11 Analog Inputs
-
3 Load Inputs (MAP, TPS, MAF)
-
2 Trigger Inputs (Reluctor, Optical or Hall Sensors)
-
2 Knock Inputs
-
Support for Reluctor and Hall effect crank and cam sensors.
-
Camshaft & crankshaft sensor inputs individually software configurable for hall effect & reluctor sensor types. Response speed is also software configurable for improved noise immunity.
-
Eleven general purpose digital Inputs with logic level sensitivity & pullup to +5volts. Useable for speed measurement. Switch I/Ps. Four are useable for Camshaft position measurement.
-
Individual Cylinder Knock with support for two sensors.
-
Variable Camshaft control for up to four camshafts. VANOS and other VVT and VVT-i supported.
-
NTC or PTC air temp sensors, software selectable.
-
External 2.5 bar or 7 bar map sensor, software selectable.
-
Stepper motor idle control, two and three wire idle control.
-
Support for most idle valve type including 2 wire, 3 wire & stepper possible. Stepper pins can be used for spare outputs if not used for idle control.
-
Support for air flow meters.
-
Internal barometric pressure sensor.
-
Tacho & Diagnostic outputs.
-
E-Throttle (DBW, Fly by wire) option. No external controller required. The throttle control is built into the V88.
Software info
|
Software |
VTS |
|
Version |
V4.10.2.1784 |
|
Firmware Version |
V4.10.2 |
|
Compatible Firmware |
V4.8.4 to V4.10.2 |
|
Languages |
If you need an older version of VTS, you can access it in our software section
Some of the features that come in the software include:
-
Tuning tools, QuickTune, Mixture Table, Maths Key.
-
Launch Control (two step rev limiter based on vehicle speed).
-
Flatshift (change gears without clutch at WOT using standard gearbox).
-
Antilag (keep turbocharger on boost during gear changes) with turbo cooldown function.
-
Selectable ignition tables.
-
Up to 440 Zone Fuel Table with configurable load and RPM centres. MGP, MAP and load options.
-
5D Fuel Mapping.
-
Many correction tables for precision fuel & ignition adaption.
-
Digital Trigger Decoding.
-
Reluctor, Optical or Hall Sensors.
-
Programmable filtering and arming thresholds.
-
Configurable trigger patterns or preset triggering options, such as, Multi tooth, missing tooth, Subaru, Mazda, Nissan, Suzuki, Mitsubishi, Ford and GM and Motronic.
-
Support for two, three or four rotor engines with ignition split.
-
Dedicated idle control with additional settings for better adaption to changing operating condition and a more stable idle.
-
Open loop boost control, switch boost pressures, different boost in each gear.
-
A/C compressor control.
-
Closed loop narrow band.
-
Closed loop wideband at WOT.
-
Tacho and speedo sweep function.
-
Cooling fan control.
-
General purpose control modules for O/P control. (use for variable fuel pump, power steering, inlet manifold air valves, extra temperature control devices etc) some of these are capable of PID feedback control.
-
Mapping via manifold pressure, throttle position, manifold and throttle or manifold.
-
Fly by wire throttle control with full control over the settings and operation.
Specifications
|
Microcomputer |
|
40 MHz Specialised Automotive Microprocessor |
|
Supply Voltage |
Normal Operation |
6.2V to 23V DC continuous |
|
Safe limits |
+/- 24V (5 min)
|
|
|
Current Drain |
At engine idle |
< 1 Amp |
|
At max engine load |
< 16 Amp (less depending on injector type and number |
|
|
Operating Temperature Range |
Min |
-40 deg C |
|
Max |
+ 85 deg C |
|
|
Engine Cylinder Number Settings |
Number of cylinders |
1, 2, 3, 4, 5, 6, 8, 10 and 12 |
|
Engine RPM Range |
0 to 20,000 RPM |
Engines up to 12 cylinders |
|
Injection Duration Timing |
Min |
0.65 msec |
|
Max |
50 msec |
|
|
Accuracy |
+/- < (10 usec + 1%) |
|
|
Setting resolution |
0.1% approx |
|
|
Injection Timing |
Range |
0 to 720 deg (crank angle) |
|
Accuracy |
+/- < (1.4 deg + 0.3 msec) |
|
|
Settings resolution |
2.8 deg |
|
|
Ignition Timing |
Advance range |
0 to 45 deg (crank angle) |
|
Accuracy |
+/- 0.2 deg (crank angle) |
|
|
Setting resolution |
0.5 deg (crank angle) |
|
|
Fuel Delivery and Ignition Mapping |
No. load sites |
16 (max) - Freely selectable |
|
No. RPM sites |
32 (max) - Freely selectable |
|
|
Data Logging Memory |
Size |
4 MB |
|
Size (v2 only) |
L * W * H |
167 * 127 * 42 mm
|
|
Weight (v2 only) |
|
500g / 1.5lbs |
|
Connectors |
|
2 x 34 way 'AMP' water and dust proof socket |
