Vi-PEC iSeries PlugIn ECUs take the hassle out of aftermarket Engine Management. ECUs are shipped with base maps for a tuner "head start". All Vi-PEC PlugIn ECUs run the same powerful micro controller and firmware as the i88.
Vi-PEC has produced replacement ECUs for the original ECU on many different makes and models. Vi-PEC ECUs came complete with a new enclosure, totally replacing the original unit.
-
The original ECU is removed, then the Vi-PEC ECU inserted. The original harness plugs in and the job is done, no wiring and the original sensors are used.
-
Most PlugIn ECUs have an internal 4 bar MAP sensor. External MAP sensors are also supported.
-
Considerable gains in power across the complete RPM range can be achieved with these boards.
-
Allows full control over fuel, ignition timing, boost pressure, and all other engine functions.
-
All ECUs are supplied with base programs available. Some final tuning will be required.
-
Variable camshaft control for up to four camshafts. Control of camshaft position is very precise and time taken to advance from full retard to full advance is less than 1 second. Support for VVT and VANOS systems
-
Closed loop control of idle speed and boost pressure makes for a "factory" idle speed stability, and precise control of boost pressure. Boost control can be setup to provide a different boost in each gear
-
Individual Cylinder Knock control, with support for two sensors. Knock control is user definable with flexible settings to allow precise knock control adjustable by ignition angle
-
E-Throttle (Electronic Throttle Control)
-
Peak and hold injector drivers are 10 amp. Both the peak Amps and hold Amps can be set separately in the software for optimum injector control.
-
Up to 6D fuel and ignition mapping
-
Precision closed loop cam control (four cam, independent control)
-
Sequential fuel delivery
-
Digital triggering, OEM patterns
-
Rotary - fully sequentially staged injection and leading - shared ignition
-
OEM idle hardware supported
-
6D boost control with three switchable tables
-
Motorsport features - antilag, launch control, gear cut control
-
Continuous barometric correction (on board)
-
CAN port
-
QuickTune - automated fuel tuning
-
Individual cylinder correction
-
USB tuning cable included
-
Statistics recording into on-board memory
-
Gear compensations for spark, boost etc
-
Real time selectable dual fuel, ignition and boost maps
-
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
-
Boost control referenced to gear, speed or throttle position for any condition
-
Up to 4MB internal logging memory
-
Onboard knock control with Digital Signal Processing (DSP) (if original ECU had knock control
BMW
|
|
|

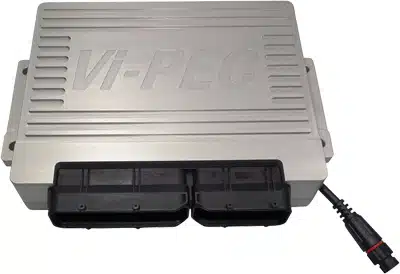

iMini BMW Mini R53 2002-2006
|
|
|
See installation manual (opens pdf file) |
|
Toyota
|
|
|

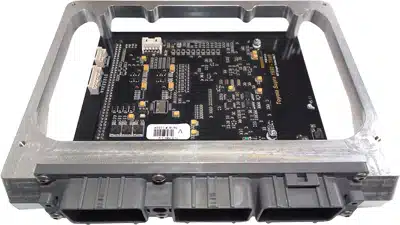

iSupra Toyota Supra 2JZ non VVT
|
|
|
See installation manual (opens pdf file) |
|
Volkswagen AG (VWAG)
|
|
|

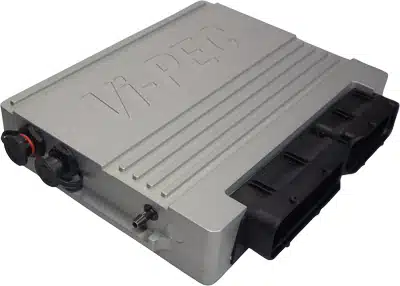

iTT Audi TT 1.8l Turbo e-throttle
|
|
|
See installation manual (opens pdf file) |
|
|
iTT Volkswagen New Beetle (1.8T e-throttle 1999-2010)
|
|
|
See installation manual (opens pdf file) |
|
|
iTT Volkswagen Golf (1.8T e-throttle 1999-2006)
|
|
|
See installation manual (opens pdf file) |
|
|
TT Volkswagen Passat (1.8T e-throttle 1999-2005)
|
|
|
See installation manual (opens pdf file) |
|
Software info
|
Software |
PC Link |
|
Version |
V5.6.8.3669 |
|
Firmware Version |
V5.6.8.3671 |
|
Compatible Firmware |
V5.0.0 to V5.6.8 |
|
Languages |
If you need an older version of PC Link, you can access it in our software archive section
Some of the features that come in the software include:
-
Tuning tools, QuickTune, Mixture Table, Maths Key.
-
Launch Control (two step rev limiter based on vehicle speed).
-
Flatshift (change gears without clutch at WOT using standard gearbox).
-
Antilag (keep turbocharger on boost during gear changes) with turbo cooldown function.
-
Selectable ignition tables.
-
Up to 440 Zone Fuel Table with configurable load and RPM centres. MGP, MAP and load options.
-
5D Fuel Mapping.
-
Many correction tables for precision fuel & ignition adaption.
-
Digital Trigger Decoding.
-
Reluctor, Optical or Hall Sensors.
-
Programmable filtering and arming thresholds.
-
Configurable trigger patterns or preset triggering options, such as, Multi tooth, missing tooth, Subaru, Mazda, Nissan, Suzuki, Mitsubishi, Ford and GM and Motronic.
-
Support for two, three or four rotor engines with ignition split.
-
Dedicated idle control with additional settings for better adaption to changing operating condition and a more stable idle.
-
Open loop boost control, switch boost pressures, different boost in each gear.
-
A/C compressor control.
-
Closed loop narrow band.
-
Closed loop wideband at WOT.
-
Tacho and speedo sweep function.
-
Cooling fan control.
-
General purpose control modules for O/P control. (use for variable fuel pump, power steering, inlet manifold air valves, extra temperature control devices etc) some of these are capable of PID feedback control.
-
Mapping via manifold pressure, throttle position, manifold and throttle or manifold.
-
Fly by wire throttle control with full control over the settings and operation.
