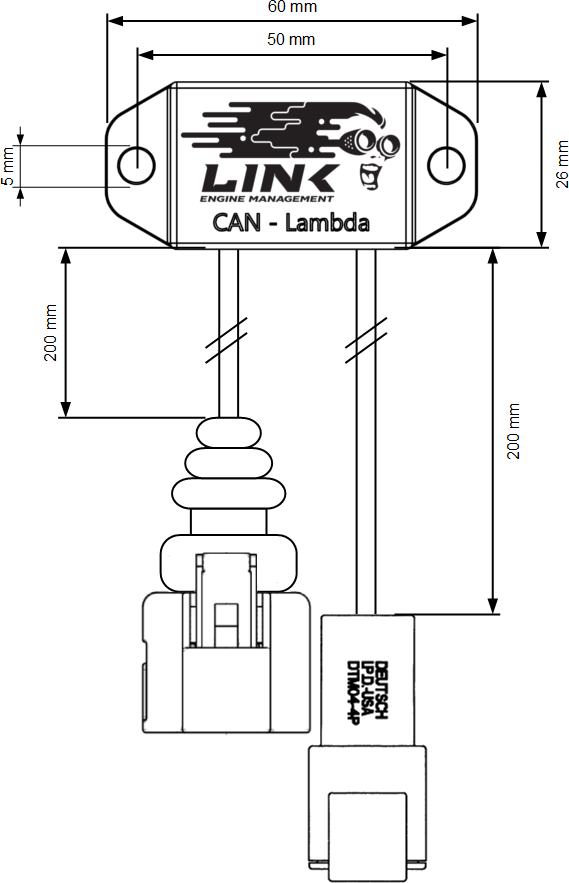

Dimensions |
|
|---|---|
|
Enclosure |
60W x 26H x 15D mm |
|
Lead Length |
200mm |
|
Weight |
70g |
|
Input Voltage |
|
|
Controller |
7.5 - 20.0 V |
|
Sensor |
10.8 - 16.5 V |
|
Input Current |
100 mA |
|
Sensor Heater |
8 A |
|
Miscellaneous |
|
|
Operating Temp |
-20 to 100 C (-4 to 212 F) |
|
Sensor |
Genuine Bosch LSU4.9 |
|
Sensing Range |
0.67 - 10 Lambda |
|
Pressure Compensation |
0.5 - 2.5 Bar |
|
CAN Frequency |
1MBit/s, 500kbit/s, 250kbit/s, 125kbit/s, 100kbit/s |
|
Connectors |
|
|
Power Loom |
DTM04-4P mates with DTM06-4S |
|
Sensor Loom |
Bosch LSU4.9 connector |
